Crystalline Silicon Power Generation Glass
Phone
Product Description
Product Features
- Thermal Insulation Performance U-value
- Building Four Properties Test: Water Tightness, Air Tightness, Wind Pressure Resistance, Plane Deformation Resistance.
- Electrical Performance: Complies with IEC61215:2021, IEC61730:2016.
- Visible Light Reflectance: Conventional glass standard GB/T18091-2015; "Photovoltaic Performance of Glass Curtain Walls" not greater than 0.3. When glass curtain walls are set at T-shaped intersections facing straight road sections, glass with visible light reflectance not greater than 0.16 should be used.
- Fire Safety: Building grade; Combustion performance Class A; GB8624-2012 "Classification of Combustion Performance of Building Materials and Products"
- Photovoltaic Grade: Fire resistance Class A IEC61730:2016

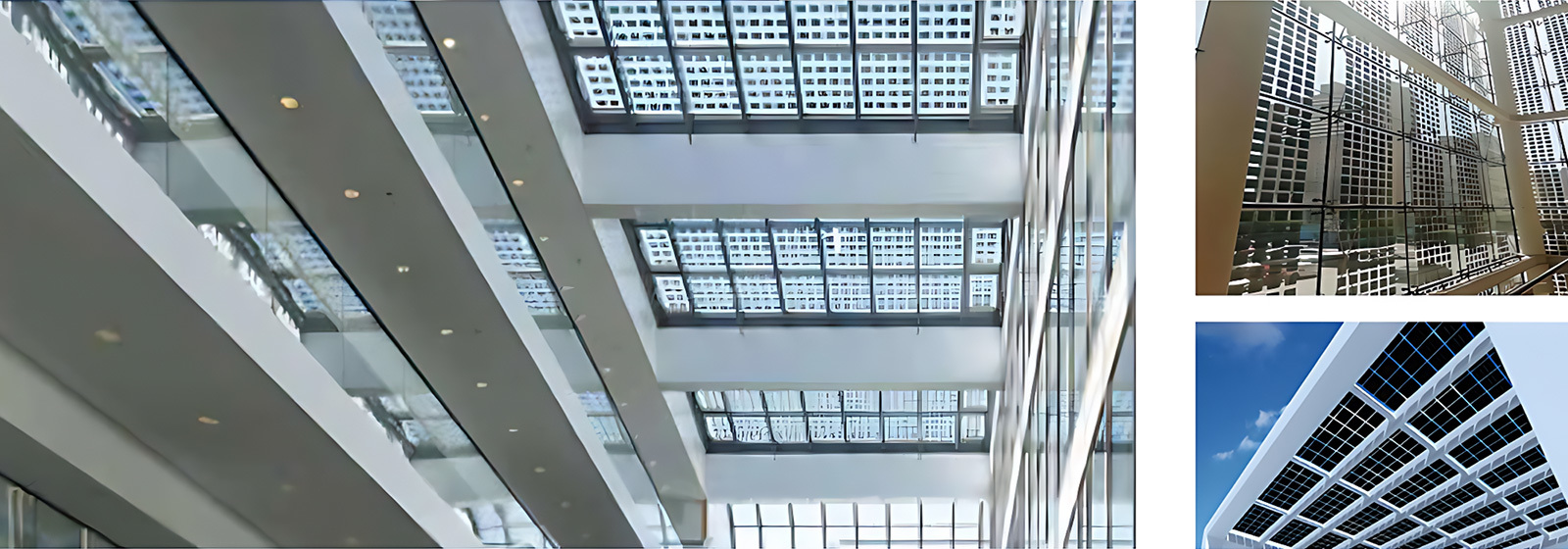

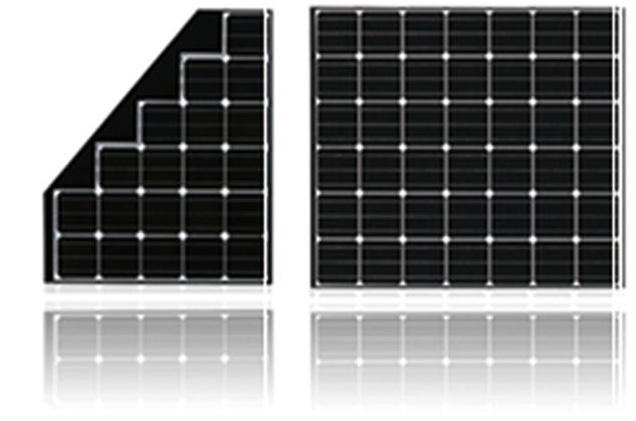

BIPV Translucent Series
Product Features
- Combines daylighting and power generation, perfectly integrated with architecture.
Product Parameters
- 6mm Ultra-clear Tempered Glass
- 0.76mm PVB Film
- 0.21mm Monocrystalline Cell
- 0.76mm PVB Film
- 6mm Ultra-clear Tempered Glass
- Light Transmittance: 20-60%
*Product size, structure, light transmittance, etc. can be customized according to customer requirements

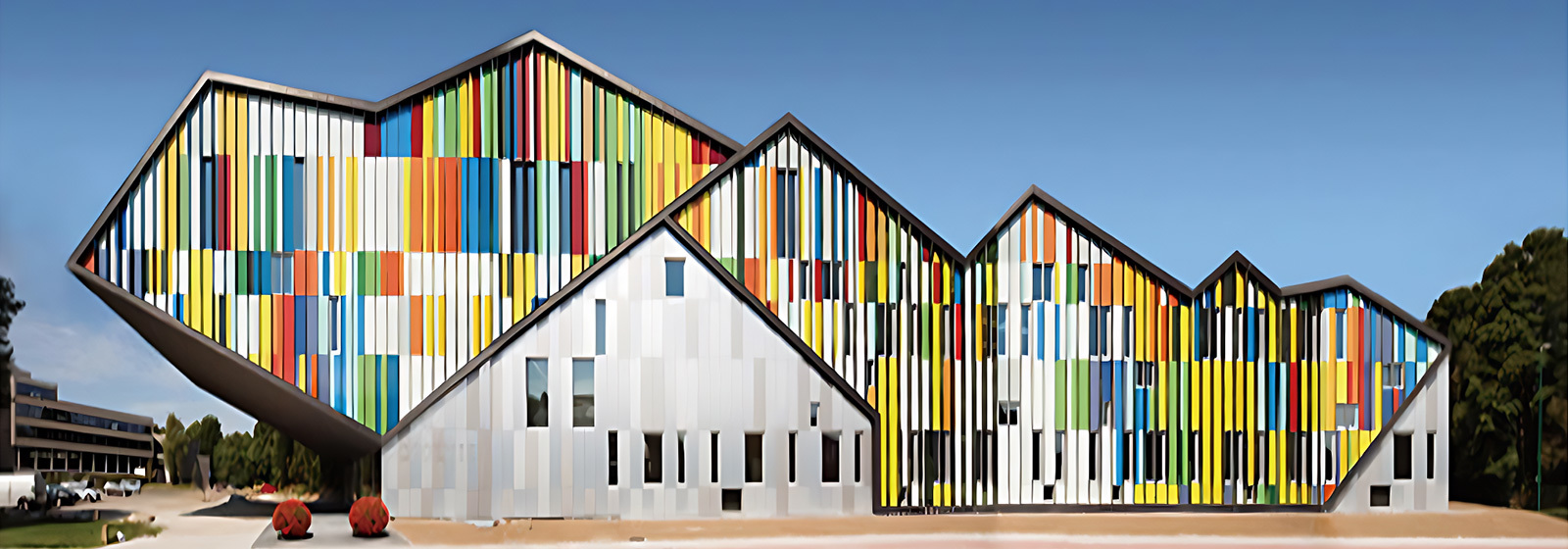

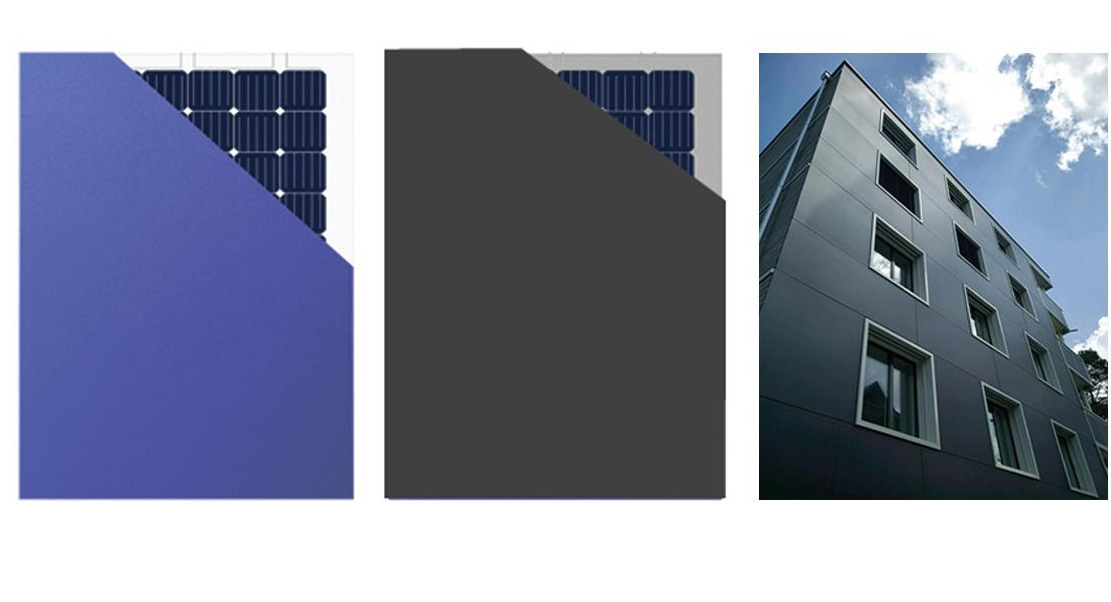

BIPV Pure Color Series
Product Features
- Bright appearance, suitable for more architectural styles.
Product Parameters
- 6mm Colored Tempered Photovoltaic Glass
- 0.76mm PVB Film
- 0.21mm Monocrystalline Cell
- 0.76mm PVB Film
- 6mm Tempered Glass
*Product size, structure, light transmittance, etc. can be customized according to customer requirements

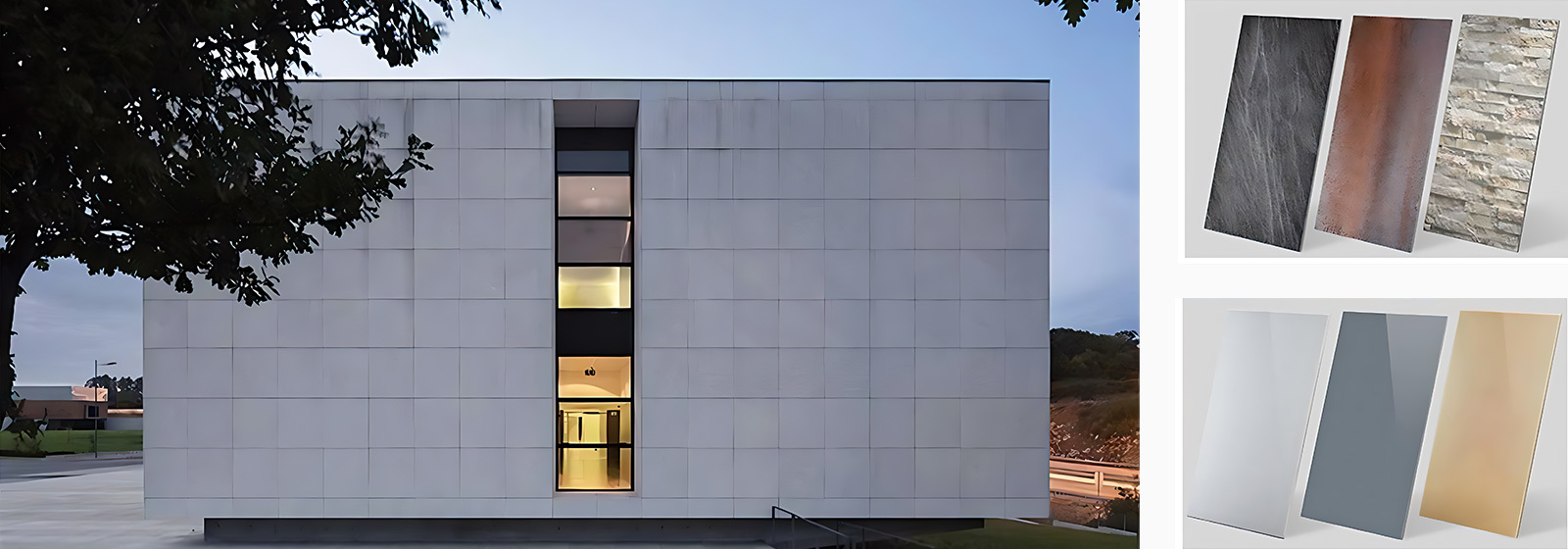

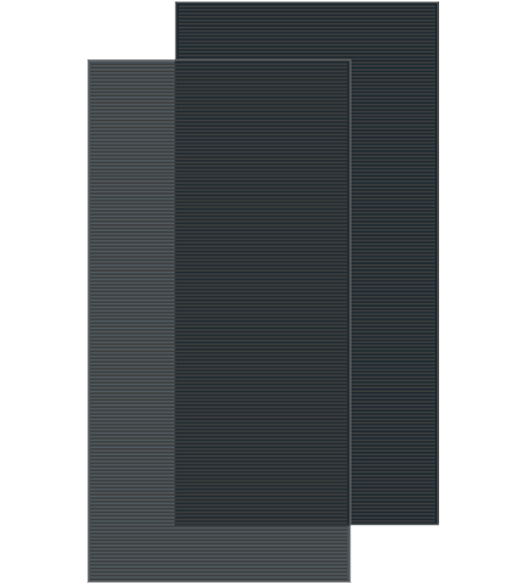

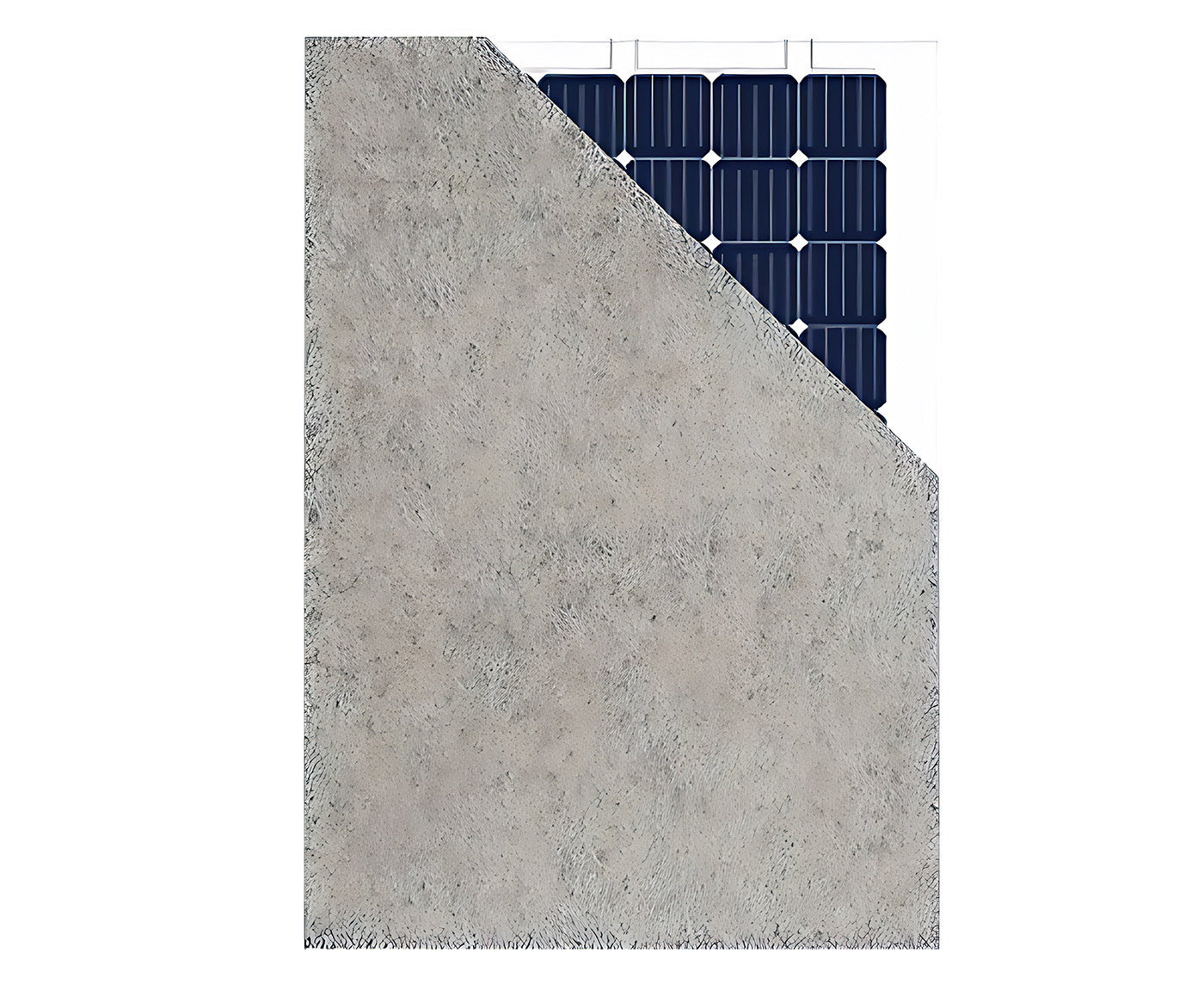

BIPV Stone Texture Series
Product Features
- Luxurious appearance, natural and high-end architectural style.
Product Parameters
- 6mm Colored Imitation Stone Photovoltaic Glass
- 0.76mm PVB Film
- 0.21mm Monocrystalline Cell
- 0.76mm PVB Film
- 6mm Tempered Glass
*Product size, structure, stone texture, etc. can be customized according to customer requirements

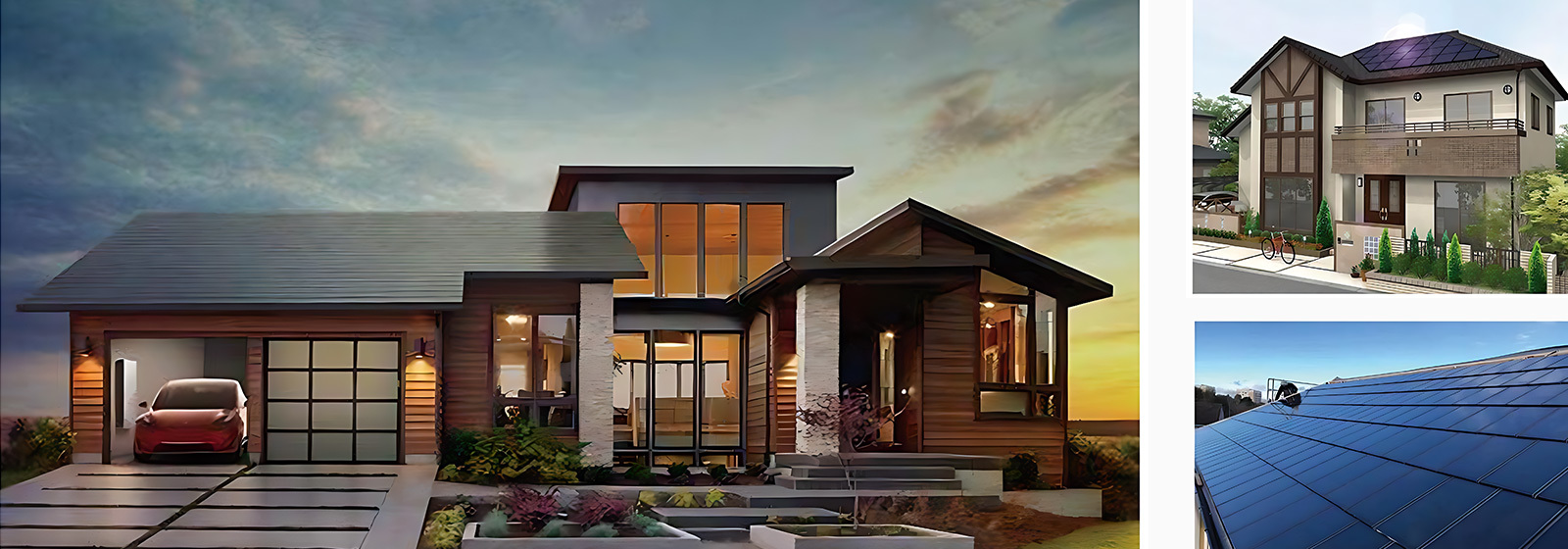

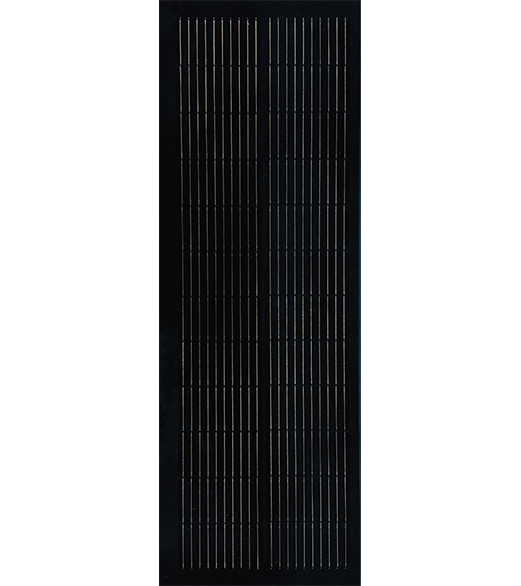

BIPV Photovoltaic Tiles
Product Features
- Perfectly integrated with roofing.
Product Parameters
- 2.5/3.2mm Tempered Glass
- 0.38mm POE/EVA
- 0.21mm Monocrystalline Cell
- 0.38mm POE/EVA
- 2.5mm Tempered Glass (OR Weather-resistant Backsheet)
Product Parameters
| Electrical Parameters STC | 650*432*22 | 1208*432*22 | |
|
Peak Power Power Output Pmax |
W |
43 |
85 |
|
Open Circuit Voltage Voc |
V |
8.2 |
16.4 |
|
Short Circuit Current Isc |
A |
6.32 |
6.32 |
|
Working Voltage |
V |
7 |
14.0 |
|
Working Current |
A |
6.08 |
6.08 |
| Structural Specification | |||
|
Size of Module |
mm | 650*432*22 | 1208*432*22 |
|
Thickness of Glass |
mm | 3.2+3.2 | 3.2+3.2 |
|
Weight |
kg | 5.5 | 10 |
|
Type of Cell |
mm | 182 | 182 |
|
Film |
PVB/POE/EVA | PVB/POE/EVA | |
|
Connector |
MC4 | MC4 | |
|
J-box Protection Rating |
IP67 | IP67 | |
|
Length of Connector |
cm | 45 | 45 |
|
Package |
Wooden Box | Wooden Box | |
| Temperature Characteristics | |||
|
Nominal Module Operating Temperature |
℃ | 45 | 45 |
|
Temperature Coefficient (Pmax) |
%/℃ | -0.38 | -0.38 |
|
Temperature Coefficient Voc |
%/℃ | -0.36 | -0.36 |
|
Temperature Coefficient Isc |
%/℃ | 0.07 | 0.07 |
| Performance Parameters | |||
| Maximum System Voltage | V | 1000 | 1000 |
| Maximum Fuse Rated Current | A | 15 | 15 |
