Cadmium telluride photovoltaic glass
Phone
Product Description

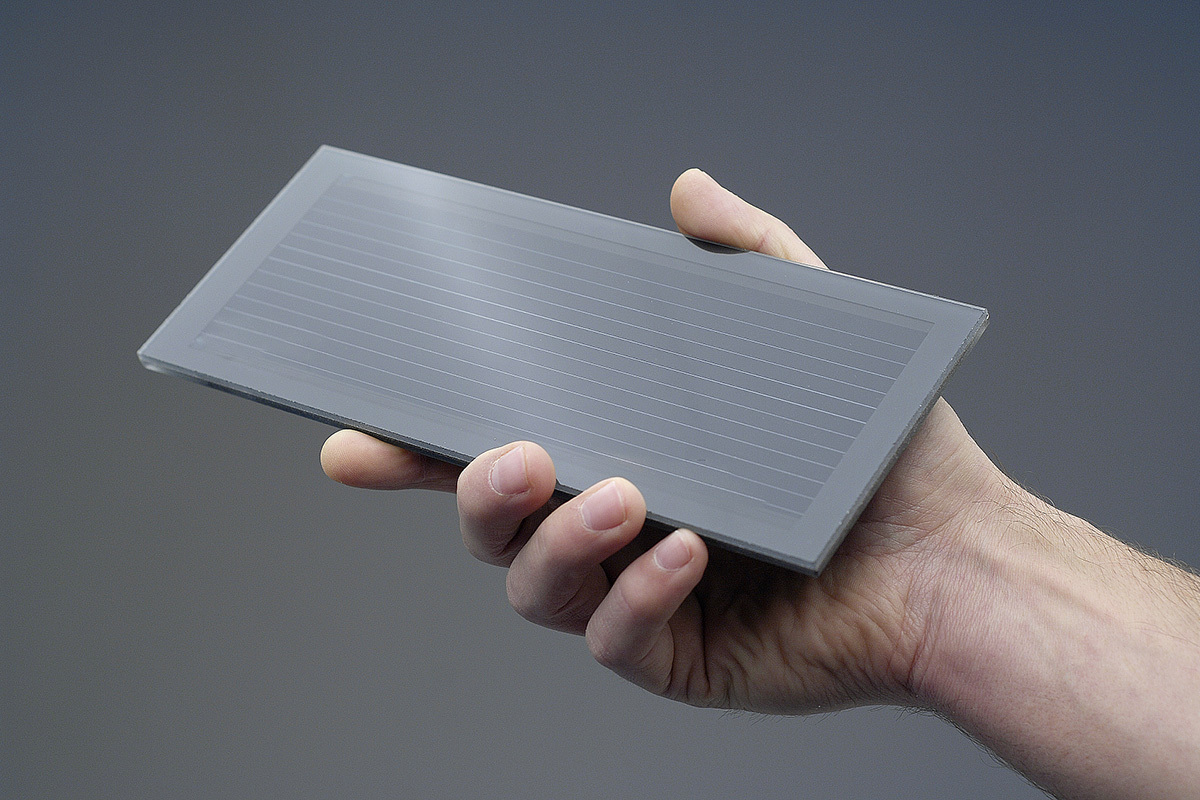

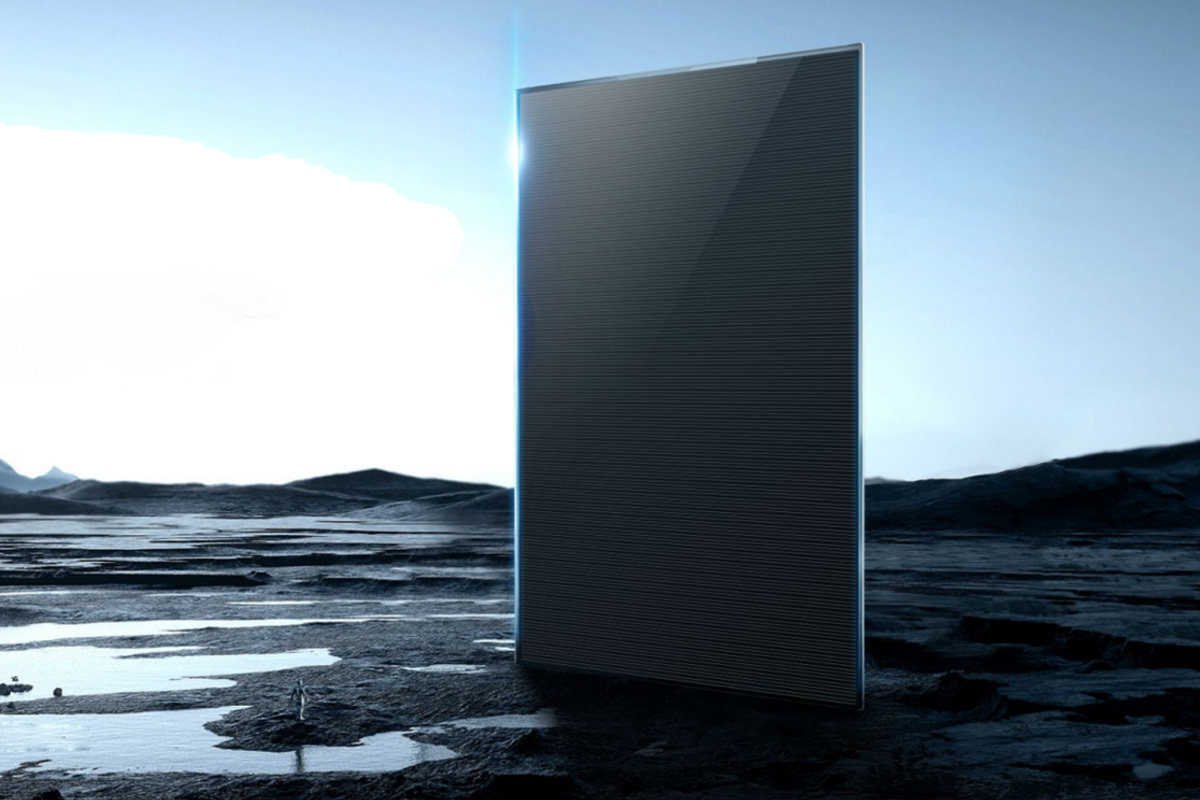

Cadmium telluride power-generating glass is an innovative building material that combines the transparent beauty of glass with the energy conversion capability of solar cells. This technology transforms every building into a potential power station, achieving seamless integration of renewable energy. The power-generating glass not only provides clean electricity but also enhances the building's aesthetics. It can be customized for use in building curtain walls, windows, roofs, and other areas, perfectly integrating with the architecture.
Higher safety performance
Low current and high voltage, more stable performance
Stronger architectural integration
Customizable appearance to meet different architectural pattern needs
Better light transmittance performance
Uses microscopic etching for uniform light transmission
Stronger high-temperature resistance
Temperature coefficient of -0.29%/℃, resulting in higher power generation in summer
Stronger resistance to shading
Limited power impact from small-area shading
Stronger weak-light power generation
Wide spectral response range, longer power generation time
Stronger anti-degradation capability
Only 12% degradation over 27 years
Better convenience
Frameless double-glass structure with self-cleaning effect
High safety
- Strength greater than stone; tempered glass strength meets building requirements
- Lifespan exceeds building lifecycle under normal use conditions
- Can withstand various harsh environmental tests
- Unaffected by hot spot effects, reducing fire risk, safe and reliable
More aesthetically pleasing
- Designed entirely according to building material requirements, made specifically for architecture

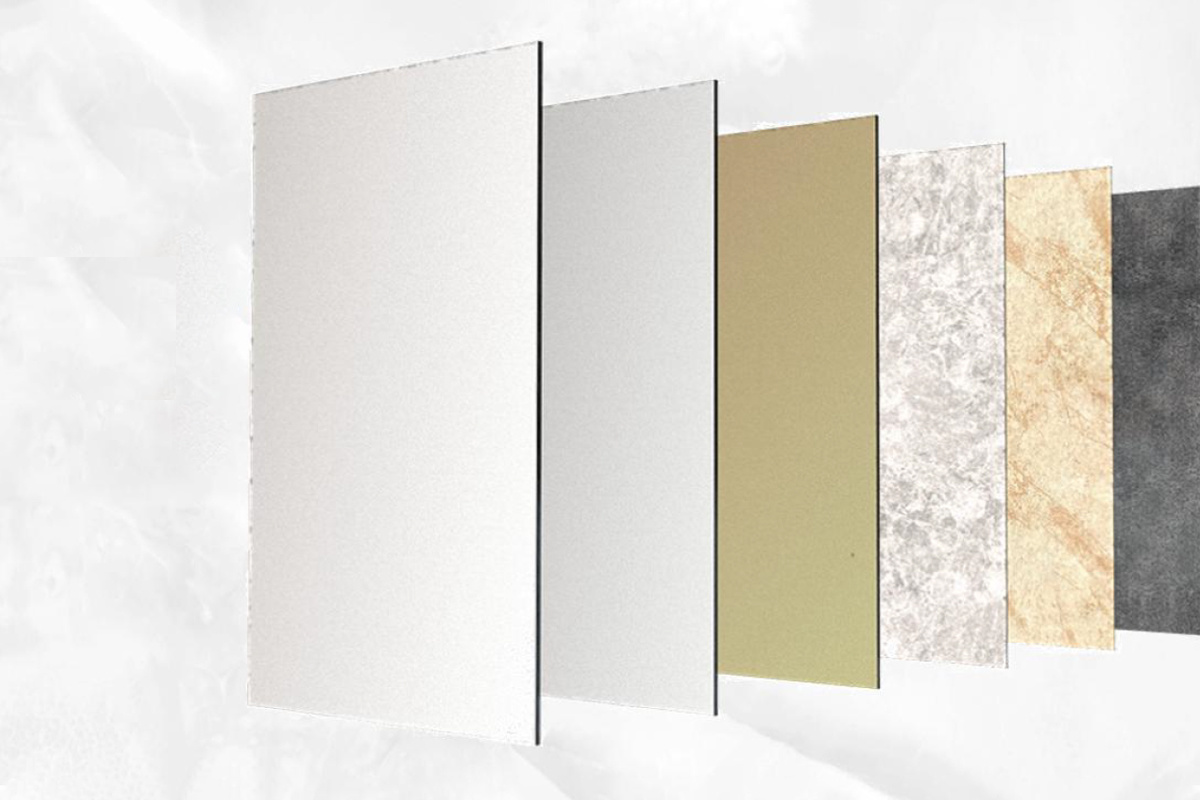

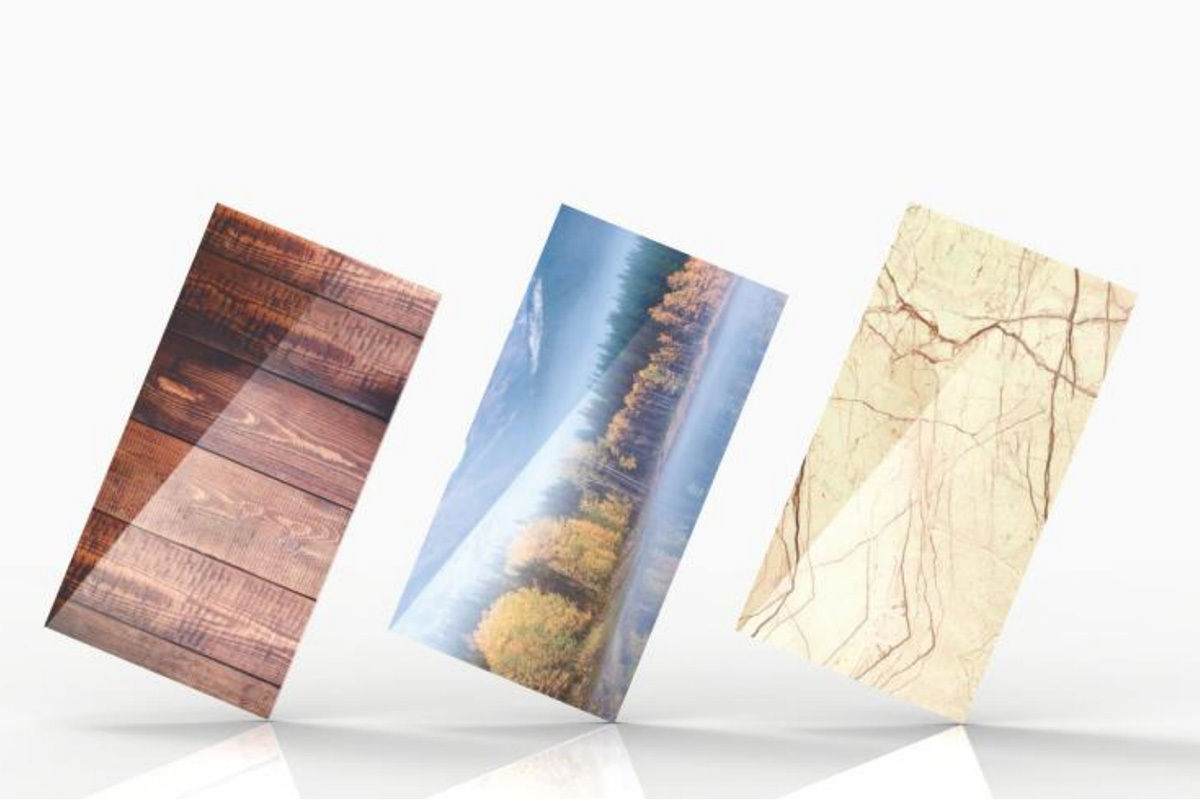

- Achieves adjustable light transmittance with customizable colors, patterns, and shapes
- Can be perfectly matched with glass, stone, and aluminum panels
High power generation
- High conversion efficiency, good weak-light performance, low temperature coefficient, low degradation rate, minimal shading loss, low tilt angle dependence
- Compared to traditional solar products, higher power output, better returns, and simpler maintenance
More economical
- Pollution-free throughout the entire production cycle
- Significantly reduced energy consumption compared to traditional crystalline silicon
- Lowest carbon emissions among similar products
Our advantages
Built-in shading reduces indoor temperature by 5℃-10℃ compared to ordinary sunrooms in summer. |
Customizable colored PVB solutions with multiple color options. |
Chip light transmittance selectable from 10%-50%, uniform light without mottled shadows. |
Power generation for self-use and surplus electricity fed into the grid, providing long-term stable returns. |
Power-generating glass can be used for 25 years, ensuring customer confidence. |
Product Parameters
| Electrical parameters | ||||
| Model | JN-B5 | JN-B6 | JN-B8 | |
|
Nominal power |
Pmpp/W | 110 | 110 | 110 |
| Power tolerance | / |
±5% |
±5% |
±5% |
| Short circuit current | Isc/A | 1.19 | 1.19 | 1.15 |
| Open circuit voltage | Voc/V | 122.8 | 122.8 | 122.8 |
| Current at max power | Impp/A | 1.10 |
1.10 |
1.07 |
| Voltage at max power | Vmpp/V | 101.0 | 101.0 | 100.7 |
|
STC: 1000W/m², AM2.5, 25℃ |
||||
| Mechanical Specification | |||
| Model | JN-B5 | JN-B6 | JN-B8 |
| Size | 1200×600×16.2mm | 1200×600×18.2mm | 1200×600×22.2mm |
| Weight | 29Kg |
33Kg |
40Kg |
|
Area |
0.72m2 | 0.72m2 | 0.72m2 |

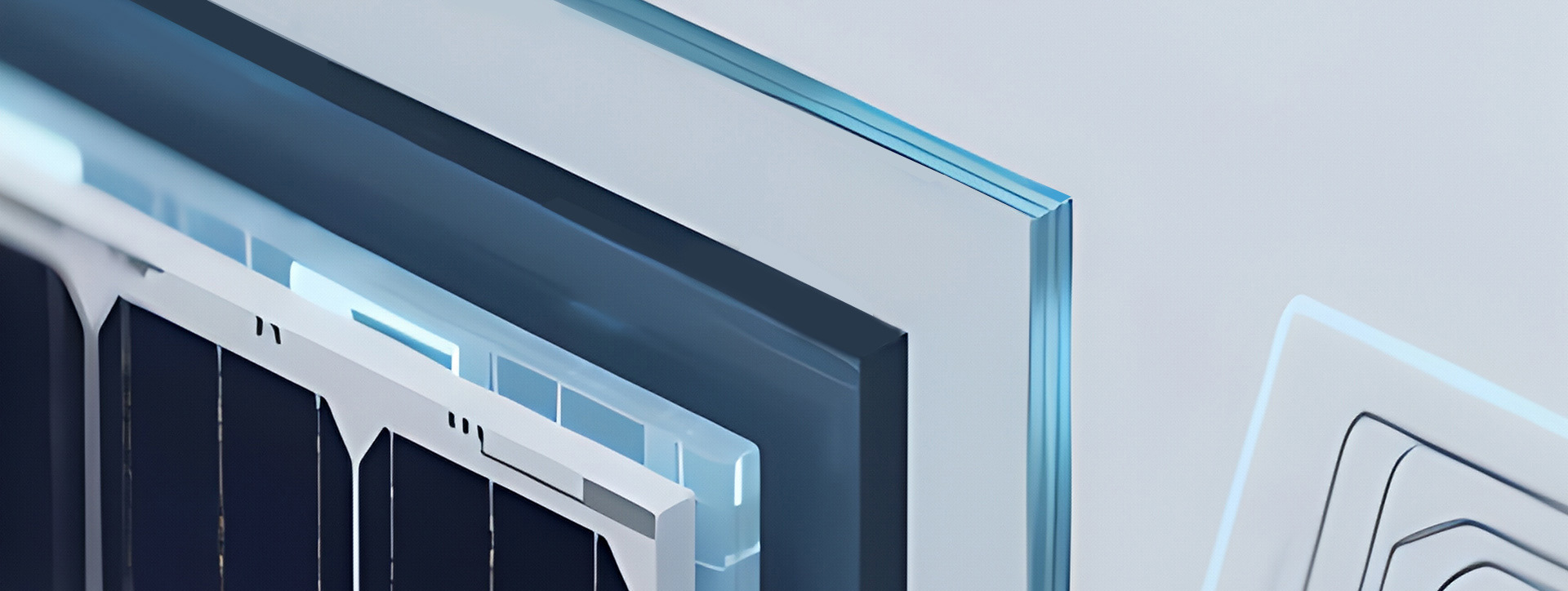

| Structure | 5mm+3.2mm+5mm | 6mm+3.2mm+6mm | 8mm+3.2mm+8mm |
| Junction Box | Side, cable 2.5mm²,650±10mm | ||
|
Connectors |
MC4 | ||
| Operation Conditions | |||
| Maximum system voltage | DC1000V(IEC) | Protection Level | IP67 |
| Maximum reverse current | 6A | Burning class | A2 |
| Snow load |
6000Pa(IEC) |
Temperature Coefficient (Pmpp) | -0.29%/℃ |
| Wind load | 6000Pa(IEC) | Temperature Coefficient (Voc) | -0.28%/℃ |
| Temperature Range | -40℃~85℃ | Temperature Coefficient (Isc) | +0.04%/℃ |
| NMOT | 42±2℃ | Anti-hail rating | IV |
| A safety factor of 1.5 has been considered during the test | |||
